Stop Juggling Drives and Clouds
Still hopping between hard drives, Google Drive, and Dropbox? Here’s a cleaner way: a private 136TB NAS that can push ~1 GB/s on a 10 GbE network—no recurring subscriptions, built for professional ArchViz workflows.
What We’re Setting Up (Specs & Context)

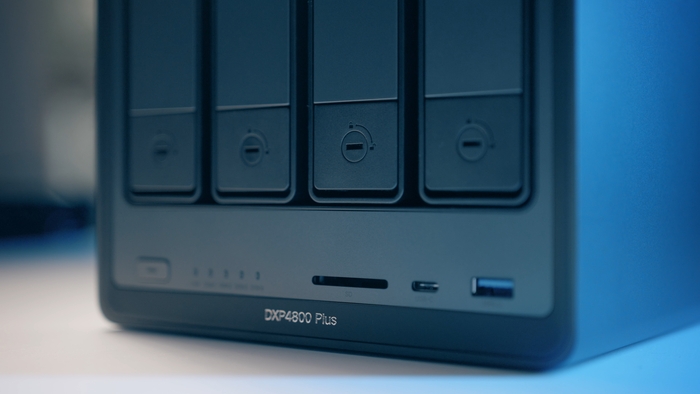

Model: UGREEN NAS DXP4800 Plus
CPU: 12th-Gen Intel Pentium Gold 8505 (5-core)
Networking: 10 GbE + 2.5 GbE
Max capacity: up to 136 TB (~92k movies or ~47M photos)
Certification: TÜV-certified
Use case: Centralize ArchViz projects, textures, references, and media
Setup
Step 1 — Physical Setup (Beginner-Friendly)

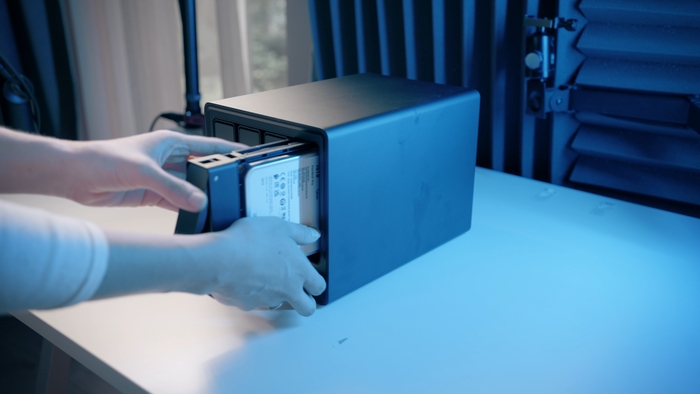

- Insert HDDs into trays, slide them in.
- Connect power + Ethernet to the switch.
- Run the UGREEN app and follow the guided setup.
- Works with mainstream software/hardware and third-party drives.
Step 2 — Storage Pool, RAID & Volumes

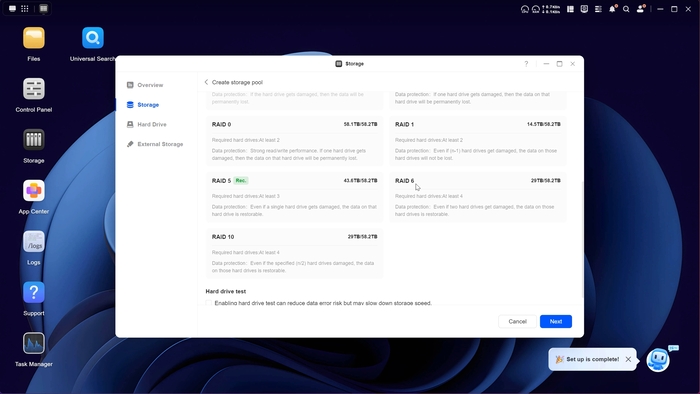

Picking RAID (We Chose RAID 10)
RAID = combine multiple drives for speed, redundancy, or both
RAID 10 = striping + mirroring → fast and fault-tolerant.
- Roughly doubles single-drive speed.
- In a 4-drive array, up to 2 drives can fail (as long as they’re not the same mirror pair).
- Trade-off: you effectively sacrifice half the raw capacity for performance + protection.
Important: RAID is not a backup. If you’re hacked or the building burns, RAID won’t save you. Use additional local/external/cloud backups (the NAS supports all three).
Our Pool & Volume
- Pool: 4×16TB HDDs in RAID 10.
- Volume: 1 main volume for simplicity.
- Heads-up: Initial pool/volume creation can take >1 day on this setup.
Health Check First
- Run Hard Drive Test to identify problematic disks early and replace under warranty before they fail.
Step 3 — SSD Cache for Real Workloads
For 4K video editing, heavy 3ds Max scenes, and texture-rich projects, SSD cache accelerates reads/writes.

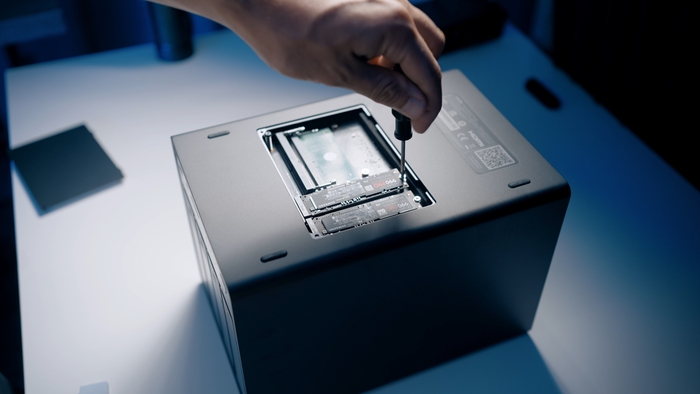

- Install: Unscrew bottom plate → insert 2×4TB SSDs → add thermal pads → close.
- Note: Cache does not add to capacity; it speeds things up.
Step 4 — Map NAS as a Drive on Windows
- Create Shared Folder(s) on NAS.
- In Windows: Map Network Drive → pick letter.
- Use LAN address + shared folder name.
- Done—now it behaves like a local drive in Explorer.
Real-World Speed Tests
10 GbE vs 1 GbE (Same 60 GB File)
To UGREEN NAS (10 GbE): ~1 GB/s sustained → ~45 seconds.
To older 1 GbE server: ~125 MB/s → ~9 minutes.
Versus Cloud Upload
Google Drive chokes on big files and account limits; our smaller test file still took ages just to start. Local 10 GbE simply wins for large ArchViz assets.
Why Speed Matters for ArchViz
Unreal Engine projects: On 1 GbE, interaction lag (≈1-second mouse delay) forced us to copy projects locally—messy and slow. On 10 GbE, it’s smooth enough to work directly off the NAS.
3ds Max: Faster save/load, texture streaming, asset imports, autosaves.

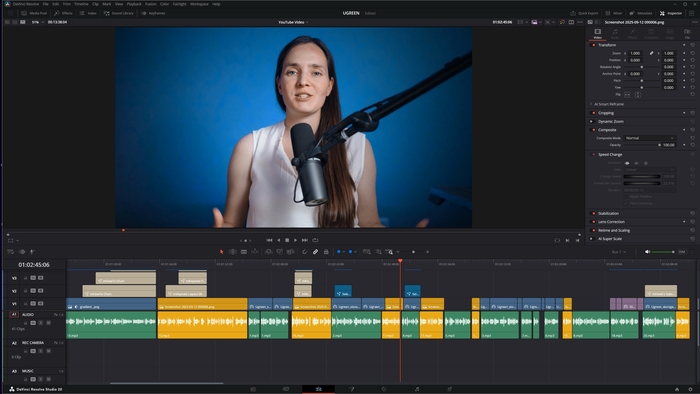

Video editing: Edit off the server and skip the “copy to local → edit → copy back” shuffle.
Access Anywhere (Office, Remote, Mobile)
Office: Standard Ethernet access.
Remote: Secure web portal or map a drive over VPN to open/save from home.
Mobile: UGREEN app to browse, preview, upload from camera roll, and share.
Smart Sharing & Permissions
Time-limited, password-protected links for clients/collabs.
Users/Groups/Folder permissions so each workstation only sees relevant projects.

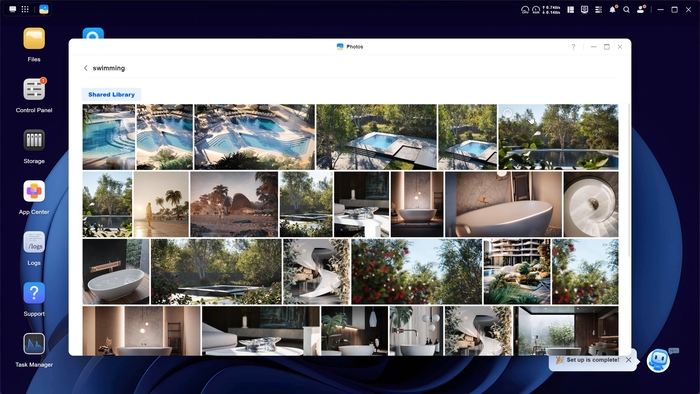

Local AI Photo Album (Offline, Private)
UGREEN’s AI Smart Recognition & Classification helps sort visuals—great for references and past renders.
- Search by keywords; auto-group by people/places/animals.
- Runs locally (no internet required); no uploads to external servers—ideal for sensitive work and personal photos.
Verdict: A Pro-Grade Studio Backbone
For ArchViz teams and solo creators, this UGREEN NAS setup delivers:
- Speed: 10 GbE + SSD cache = near-local performance.
- Scale: Up to 136TB—forget subscription limits.
- Control: Centralized assets, secure sharing, remote access.
- Smarts: Offline AI album to wrangle references and renders.
If you’re tired of juggling drives and slow clouds, this architecture is absolutely worth considering.
